Continuing the theme of breaking out the various projects from my bigger build (DIY Audio: Stealth Install). The next portion of the project entails my installing a complete Bluetooth kit with display and remote. I could have utilized the Bluetooth kit made by Pioneer that works specifically for my headunit that I am using, but at $180 and with inferior features (in my opinion) I wanted something separate from the audio system and I just happened to have the Parrot system which was purchased a couple years ago for my wife’s car and never used.

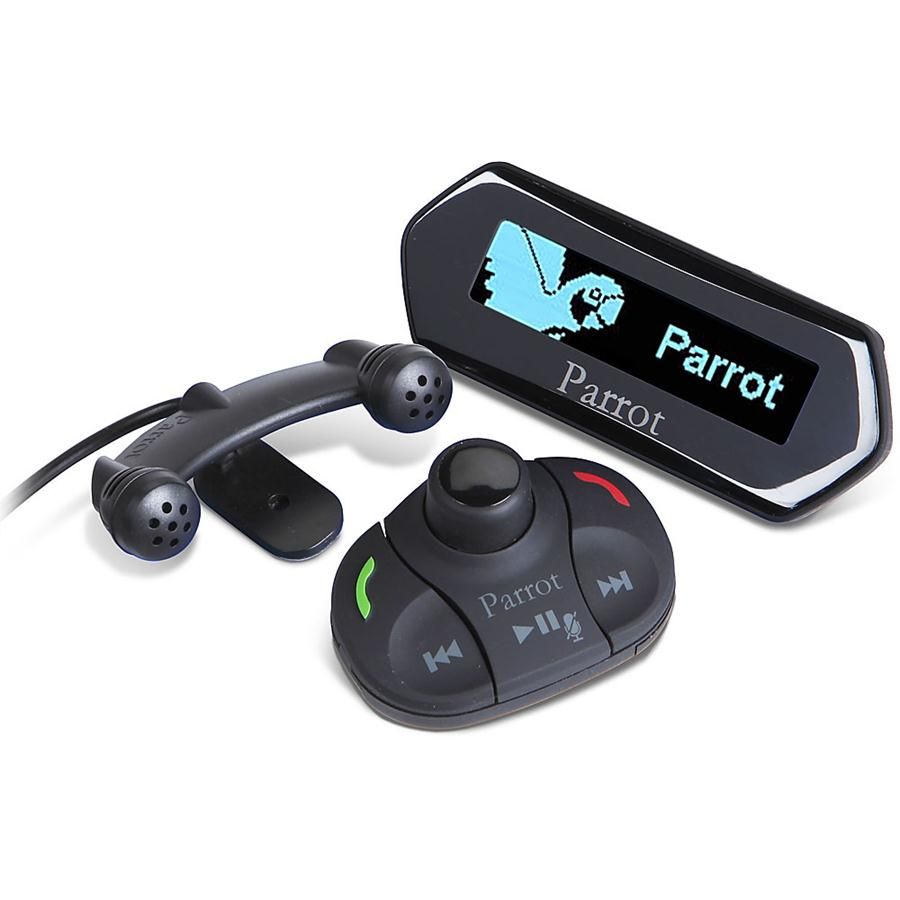

For this project I will be integrating a display and the controller into the interior of my SLK320 in a way that offers a more stock looking appearance versus just sticking it anywhere. The system has a small display which allows one to keep track of contacts, access the phones menu and see who is calling when calls come in. The MKi9100 also has additional features which we will not be using (iPod connectivity, BT audio streaming).



The first thing I needed to do was hook up the system and get things working.

To test things out I initially wire things up through the OEM harness and run the BT kit through the OEM speakers. For some reason it didn’t work right and only played through one side of the car. I didn’t take much lot of time to figure out why, but recall reading some post from others when installing in similar cars that when done this way I only got sound from the Pioneer from one side. The BT kit worked on the right side, but the Pioneer was only playing on the left.

Since I was not going to configure things this was, I didn’t try and trouble-shoot it, but for anyone who uses one of these and suffers the same results, do a google search. I suspect this is a more common problem than not.

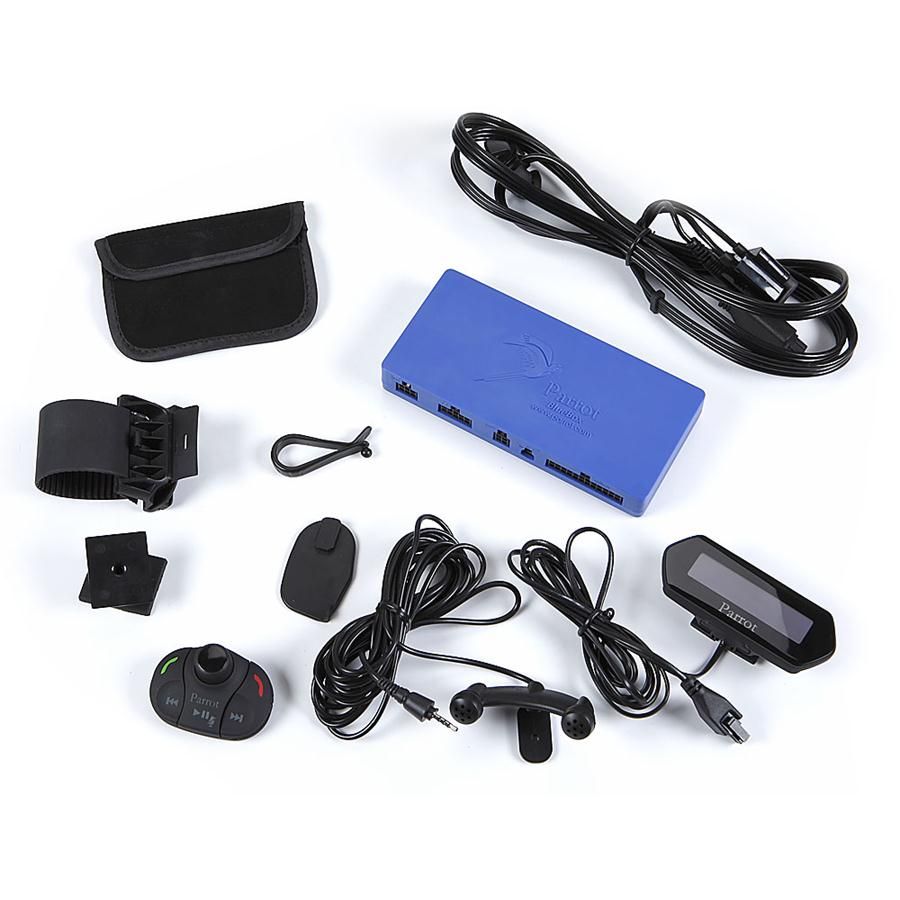

If I am not using the traditional wiring scheme of the Parrot kit, which takes the speaker level output from the source unit and passes it through the Parrots little blue box to the cars speakers, what am I using?


Eventually I will be moving to a completely active audio system with separate amplifiers, I needed to wire up a dedicated speaker to the Parrot. Since I had already made plans for 3-way separate components in the door and kicks and I moved to looking for an alternative. It just so happens that Mercedes provided me with this alternative in the way of a single speaker hidden behind the right-hand side kick panel.


This speaker is part of the cars built-in SOS and telemetric system and is used as the speaker on which you communicate with the SOS operator, or technician from Mercedes; sort of a Mercedes version of OnStar.

After wiring the output from the Parrot to this speaker I test everything and it works flawlessly. I next move to mounting of the display and the remote control.

Display Panel Fabrication





In the R170 SLK there is an ill located cup holder at the top of the dash. For most owners like myself it barely gets used for multiply reasons. Besides being awkward and unsightly, its location makes it hard to see out the front windshield if you and a passenger have anything more than a bottle of water, and mine I think has never held more than that on the trip home from buying it.

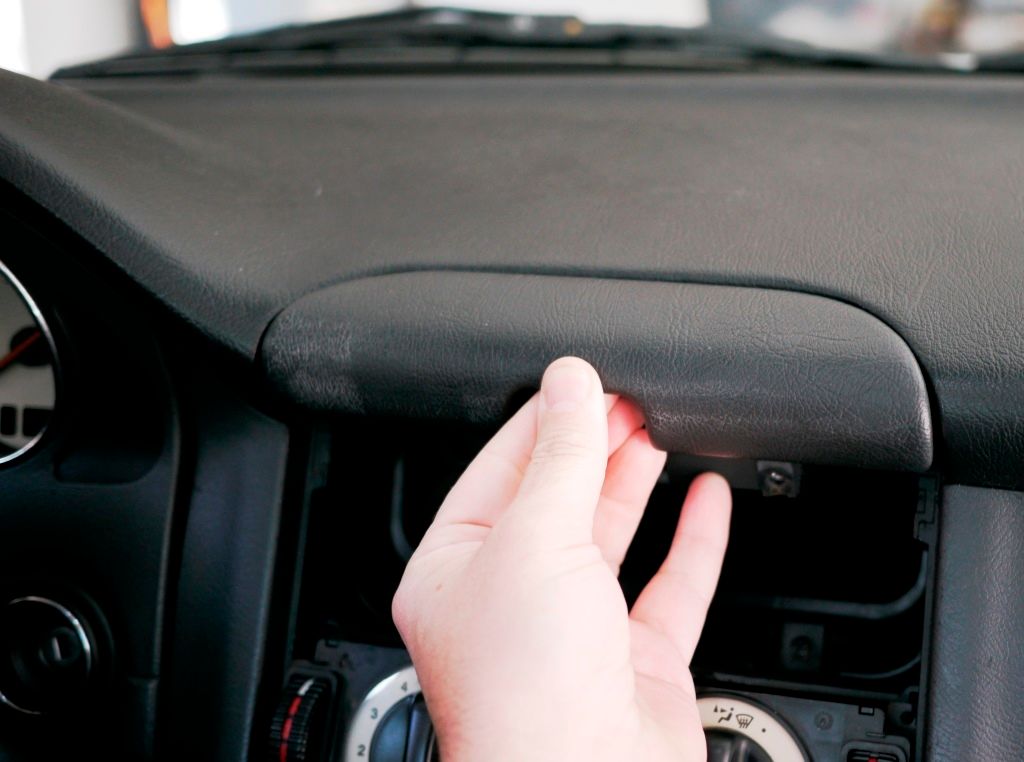

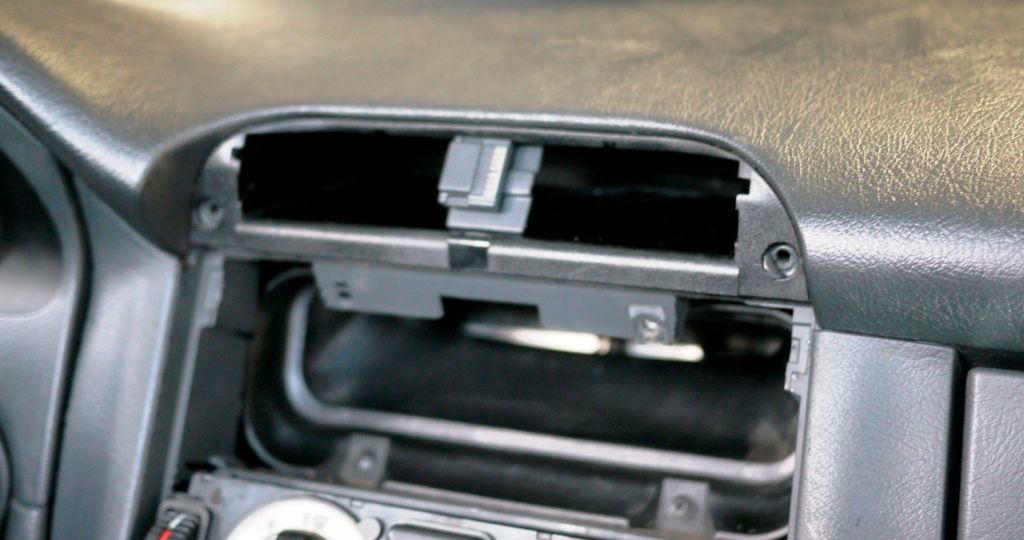

Due to my not needing this space, it will serve as the location that I chose to mount the display for the Parrot. Taking the original pocket out of the car, I proceed to remove the trim piece which serves as the cover from the compartment.

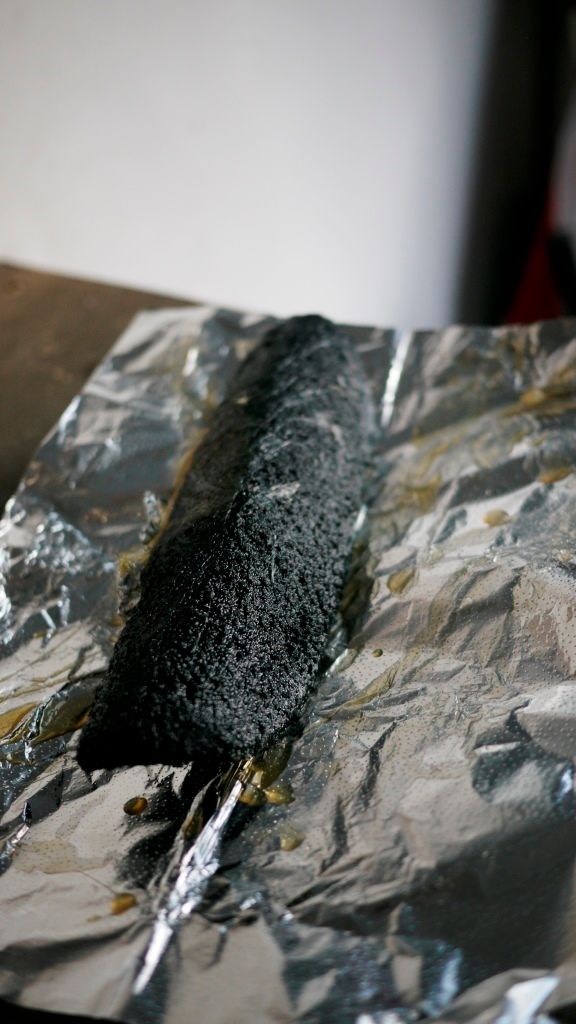

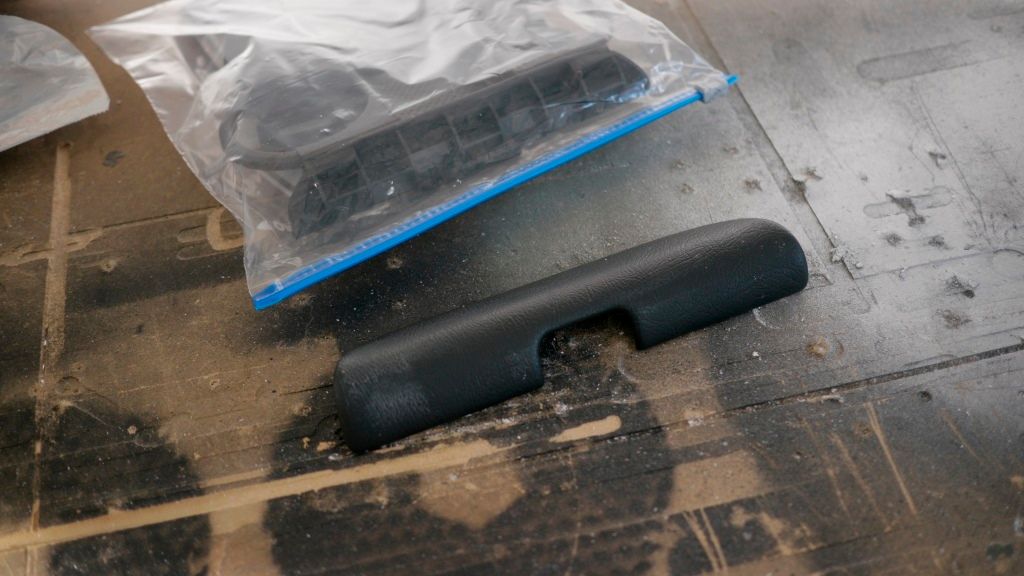

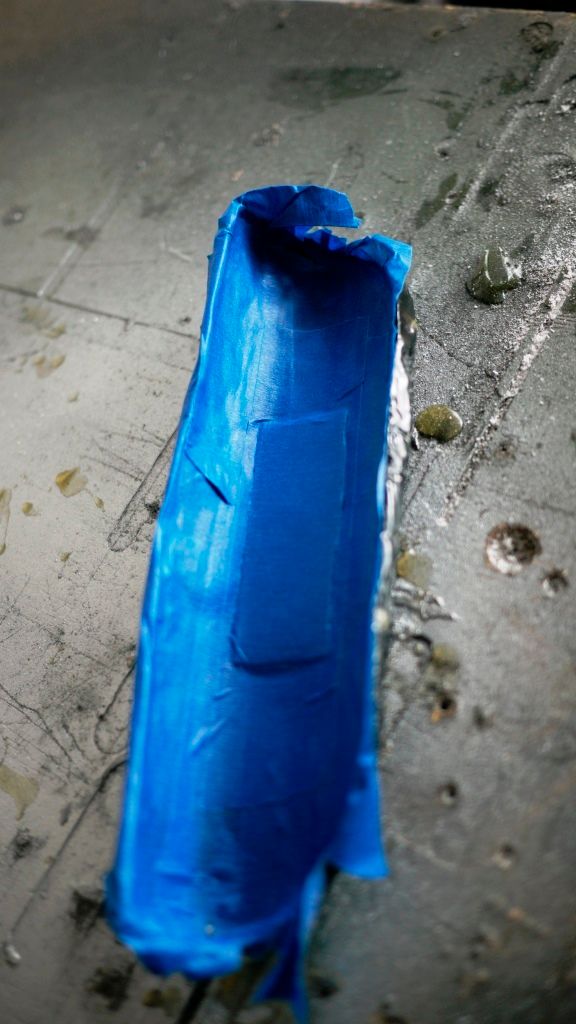

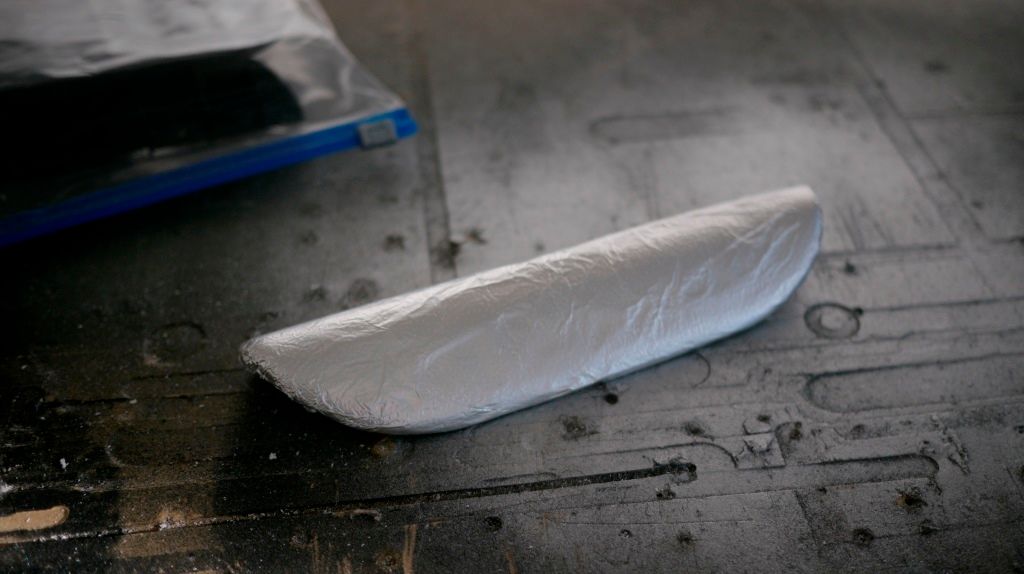

I wrap it in masking tape and aluminum foil and next lay down a fairly thick coat of fiberglass resin to make a mold of the trim piece. After letting the mold cure and dry, I remove the original trim piece and place it away for safe keeping. I next sand and smooth out the area which will serve as the mold and then placed some non-stick aluminum foil down inside the mold, then I simple pour in some resin, lay a couple of pieces of fiberglass mat and let it try. When I remove the form, I am an almost exact replica of the factory piece.







The hard part is the sanding and smoothing of this replicated piece. I spent the better part of a day trying to make it perfectly smooth, then I went in and cut the opening to hold my display and went back and started sanding and smoothing all over again.


The final product (for now), still needs some refinement. But since I do not have my factory matched leather/vinyl at this point I will need to recover it and will made some fitment adjustments at that time. It could still sit a little more flush in the dash, but for the time being it serves its purpose and looks ok.


Now that we are up and running with our new source unit and BT kit, we can take a break. Over the next few months we will be working to enhance both the audio system and the appearance of the car as well. My intent is to revisit this panel and make it fit a little better and more flush, but since I will have to remove it in order to recover it once I get my factor matched vinyl that can wait for another day.


·
